Product Discription

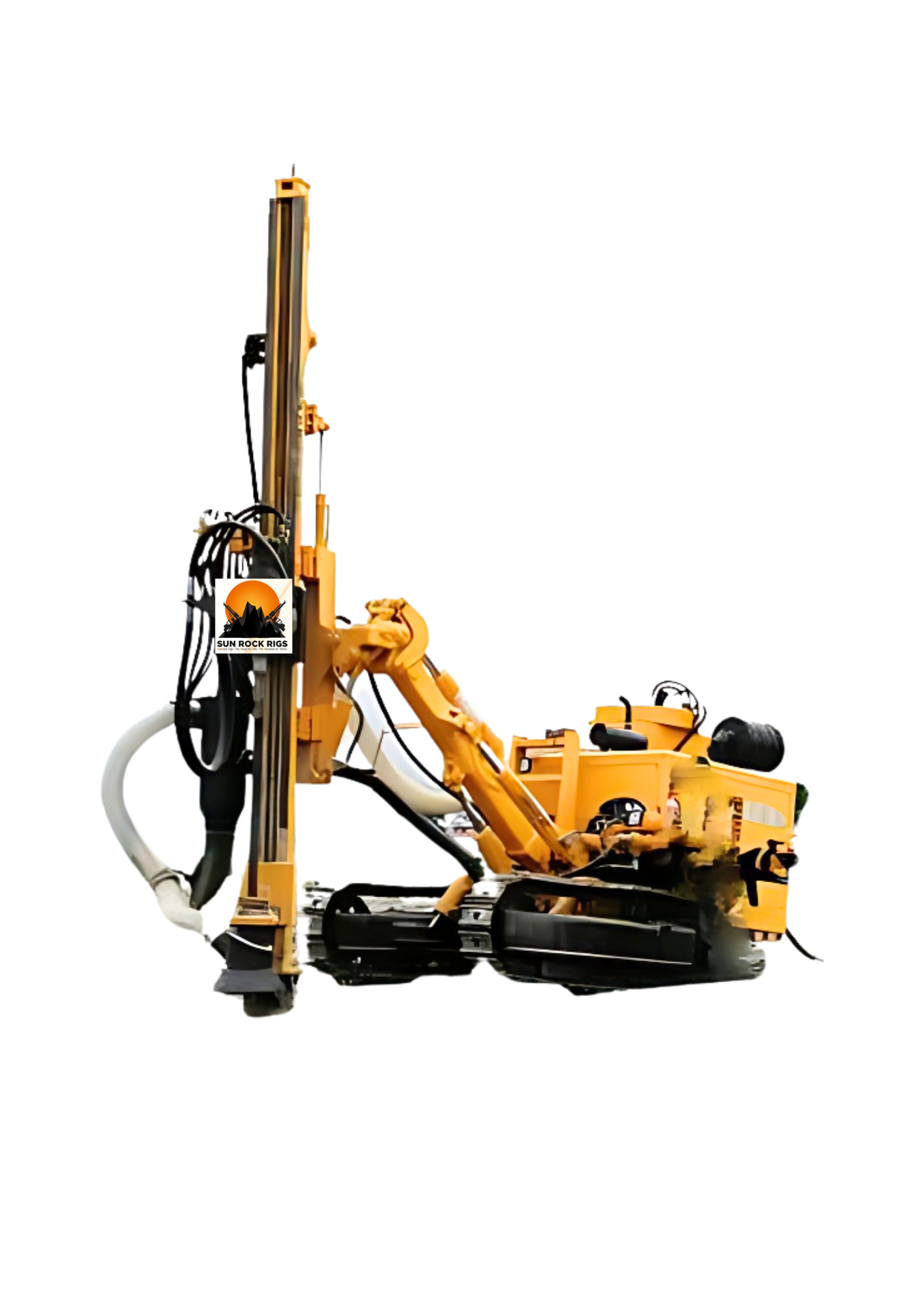

The Sun Rock Blast Hole Rig is a high-performance drilling solution designed for precision and productivity in mining, quarrying, and large-scale excavation projects. Engineered for durability and efficiency, this rig supports drilling diameters ranging from 165mm to 200mm using the DTH (Down-The-Hole) method, with a maximum drilling depth of up to 30 meters. It delivers exceptional pulling power with a pull-up force of 12,680 Kgf and a pull-down force of 8,710 Kgf, ensuring consistent penetration through hard rock formations. The rotary drive produces 5,150 Nm of torque, paired with optimized RPM control for accurate and efficient drilling. Powered by a 900 CFM / 350 PSI compressor, the system ensures a steady and powerful air supply for high-performance down-the-hole drilling operations. Mounted on a heavy-duty track frame, the rig offers excellent stability and mobility across rugged terrains. It comes equipped with the option for a twin cyclone dry-type dust control system to enhance site cleanliness and operator safety. Additionally, it supports a centralized air-conditioned control cabin, providing comfort and ease of operation in all working conditions. The Sun Rock Blast Hole Rig combines strength, versatility, and modern features to deliver outstanding results in demanding drilling environments.
